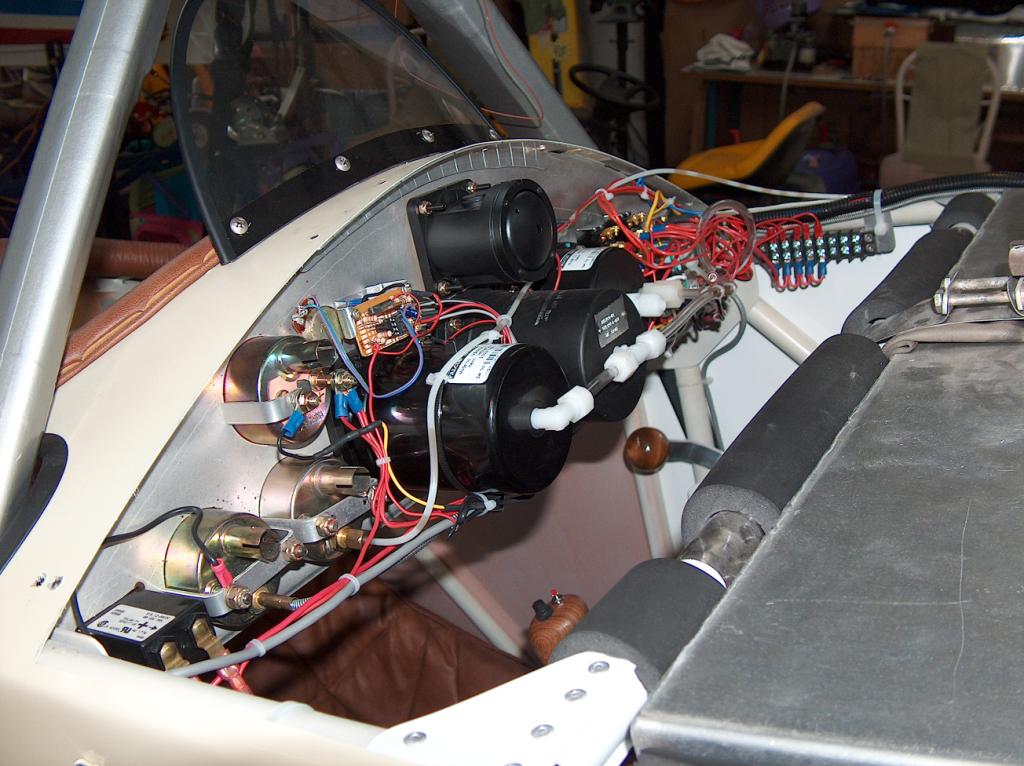

The wiring is pretty much done. Acc buss on the far side.

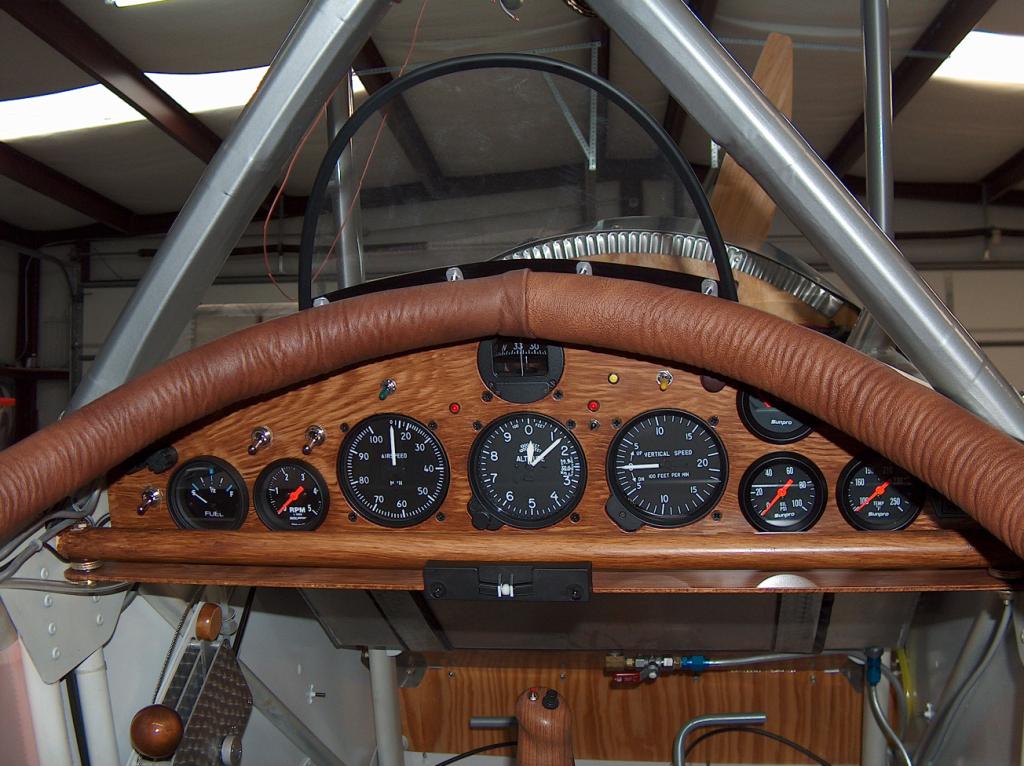

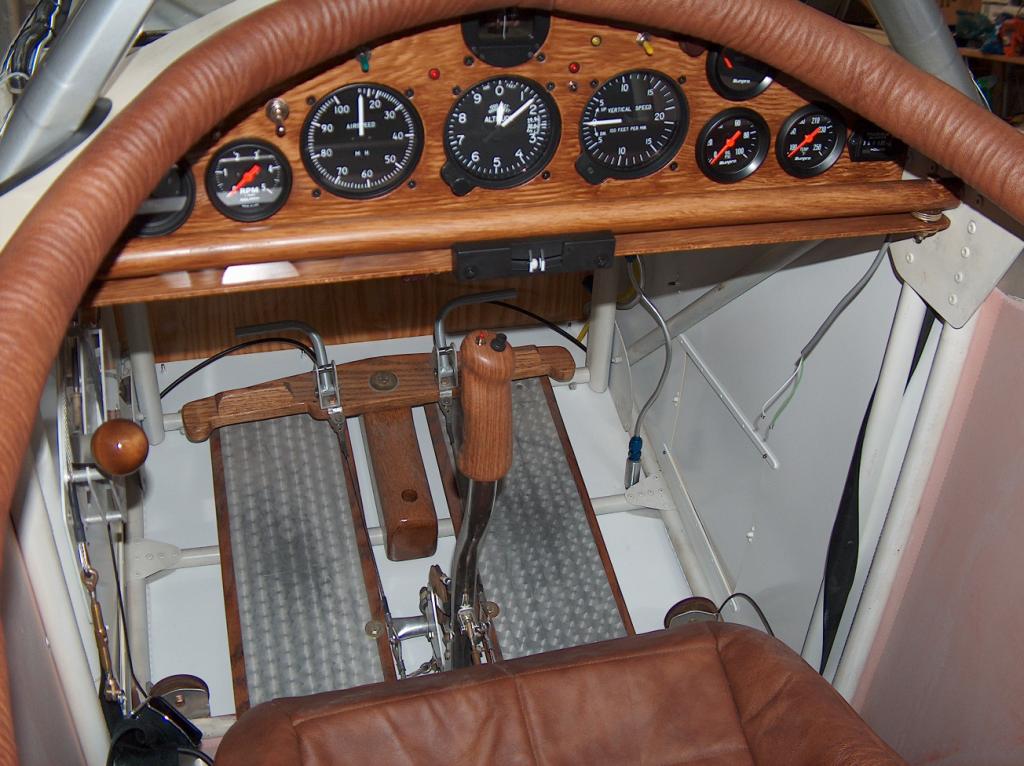

LEDs are for charge & low fuel warnings. The yellow LED works with the gas gun electronics to show the fire rate.
Small red pushbutton on the stick is to fire the gas gun. Other button is a PTT for the King KX99 handheld I'm using.

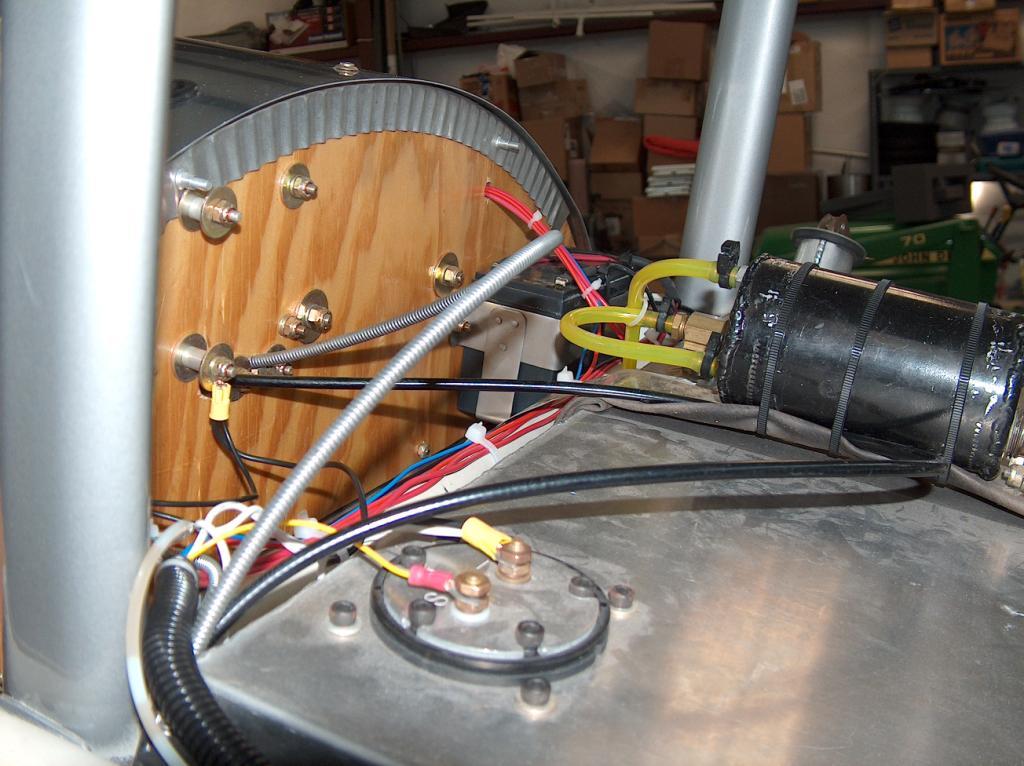

Battery is located on the firewall. Fuel level sender is in the foreground.

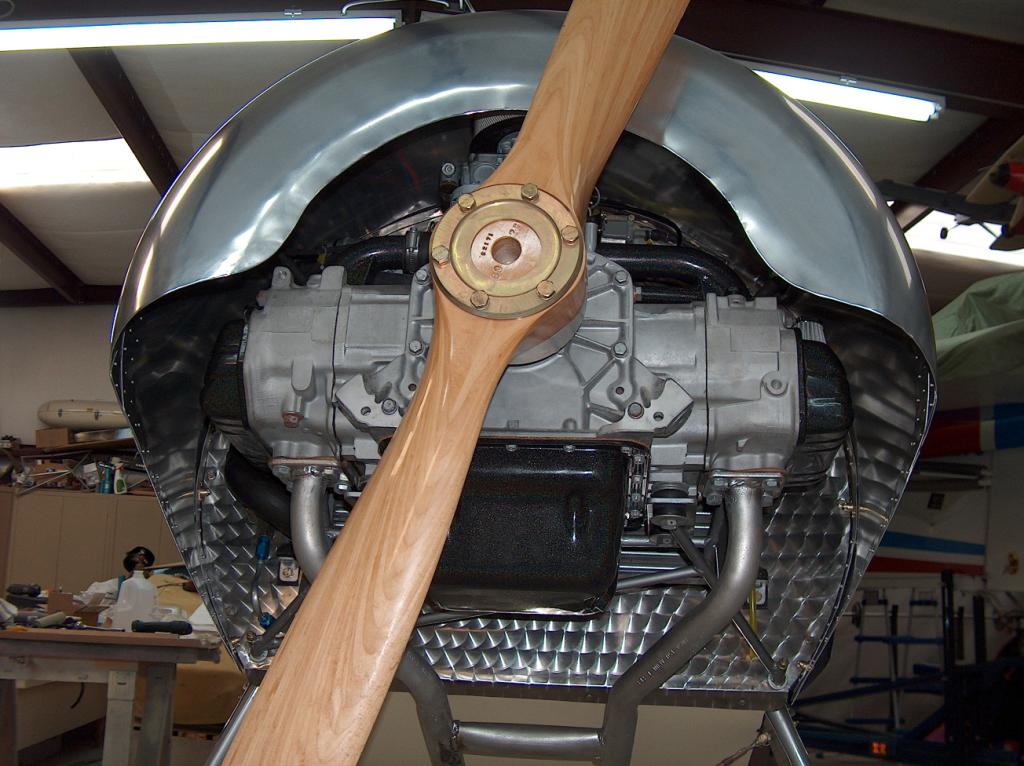

She runs again! 3200 RPM static using a 60x26. Thrust test soon...

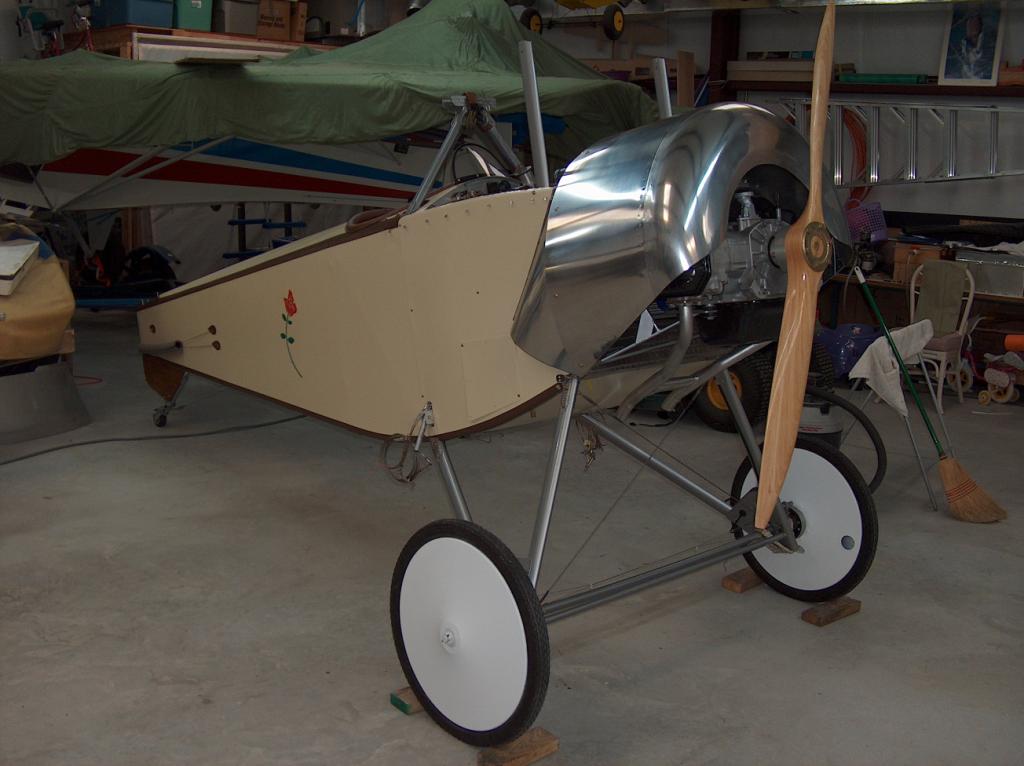

Side covers on for good now.

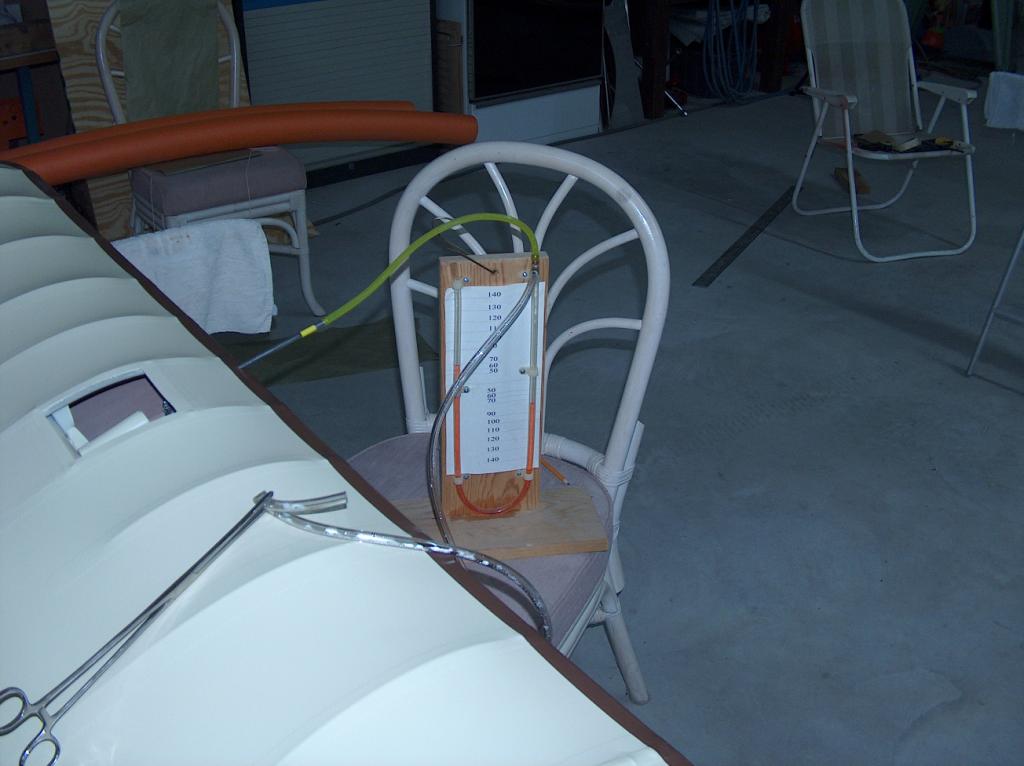

Checking the airspeed indicator calibration

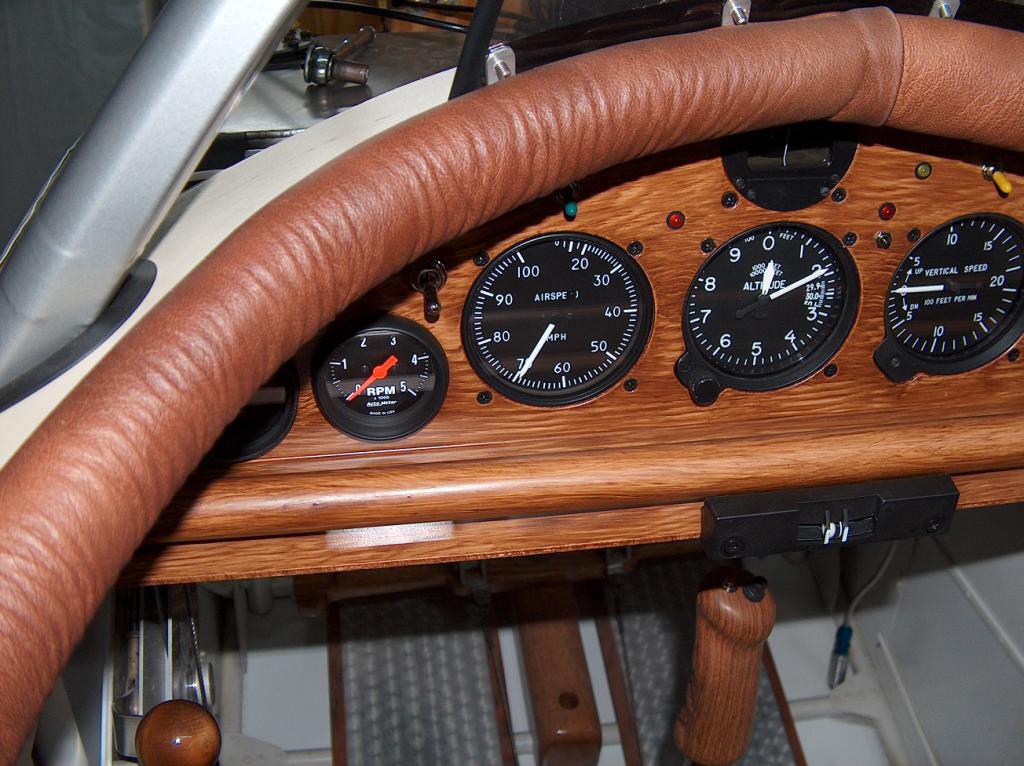

Yep, 70mph...

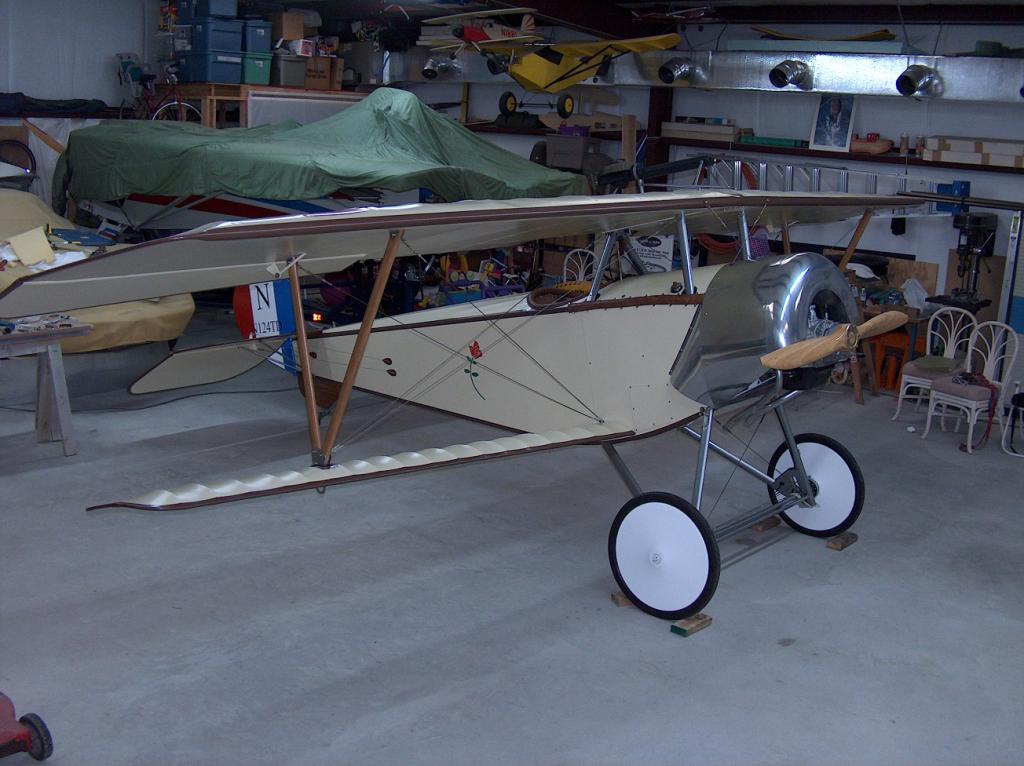

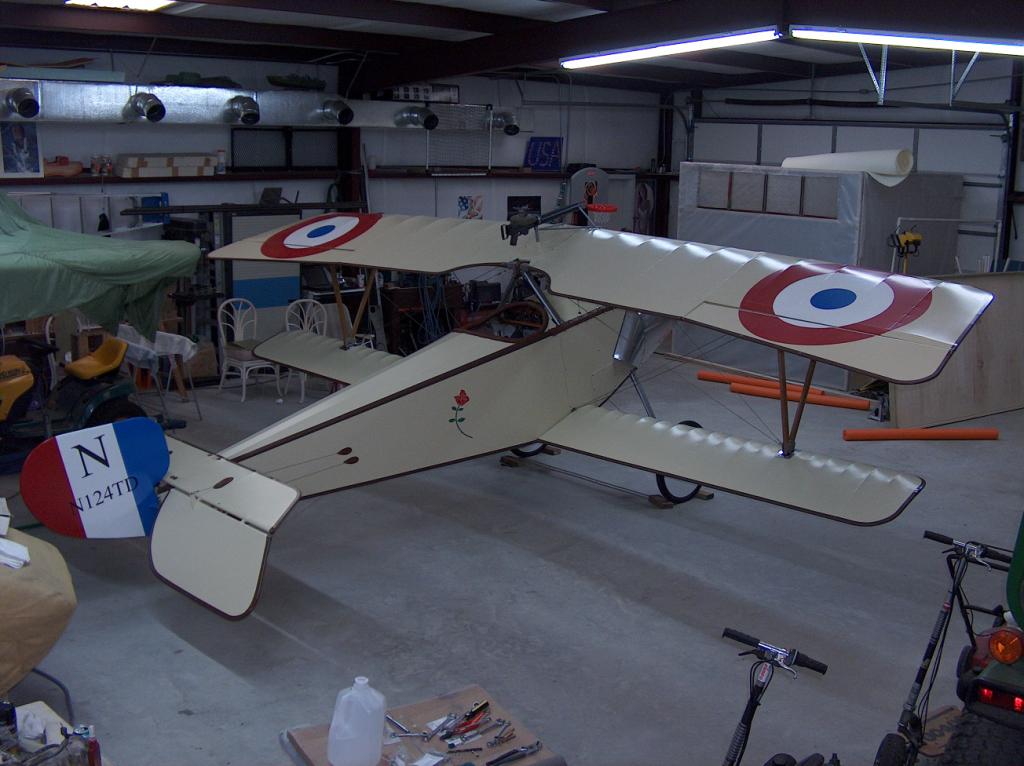

The first complete assembly!! Just finished a pull test and the EA81 pulls 265lbs static, yeah!!!

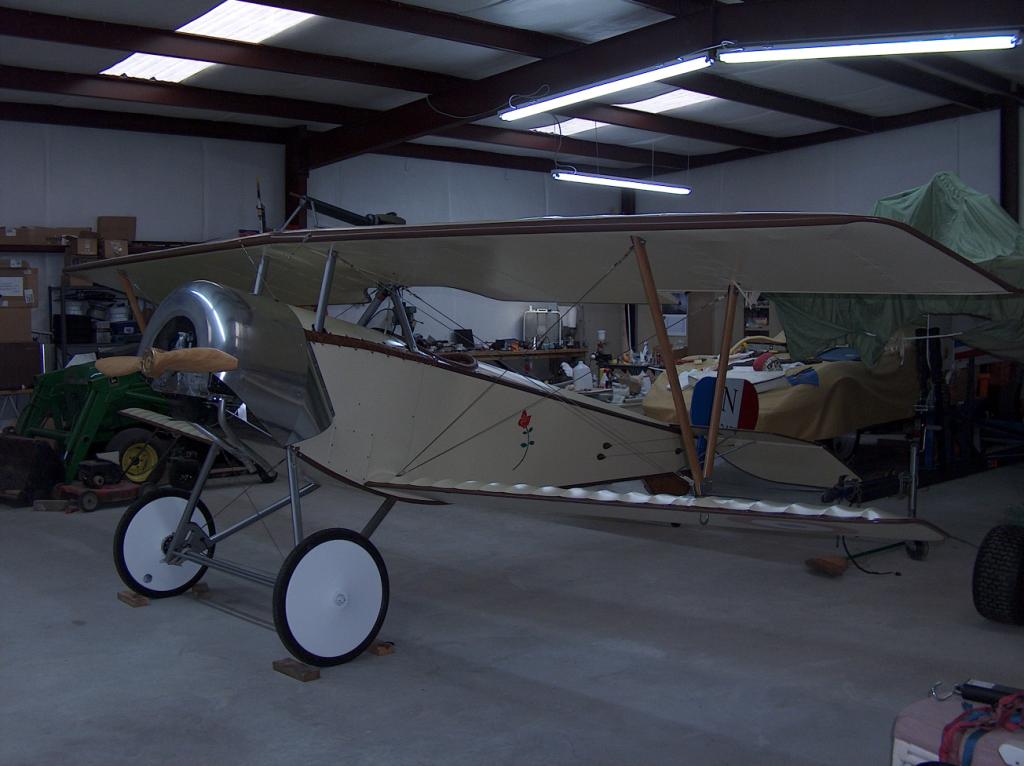

Couple of forward brace wires is all that's needed (turnbuckles backordered #@*$)

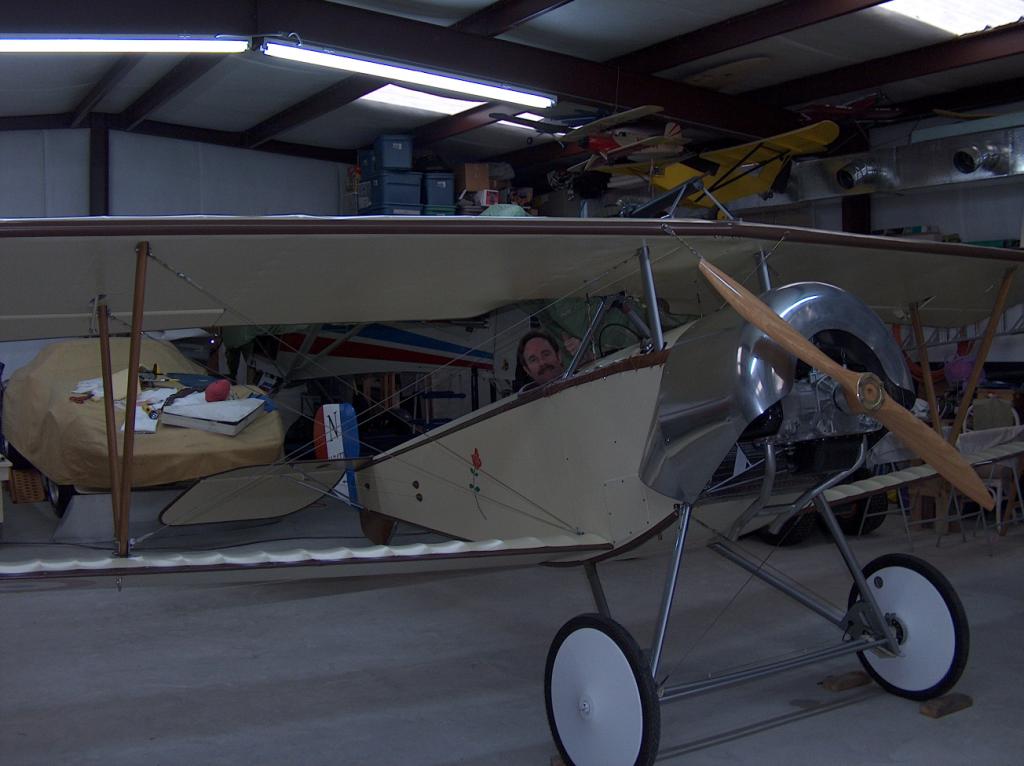

My good bud Gary ready to bust her off. Check out the movie of the assembly, engine run and MG firing...
